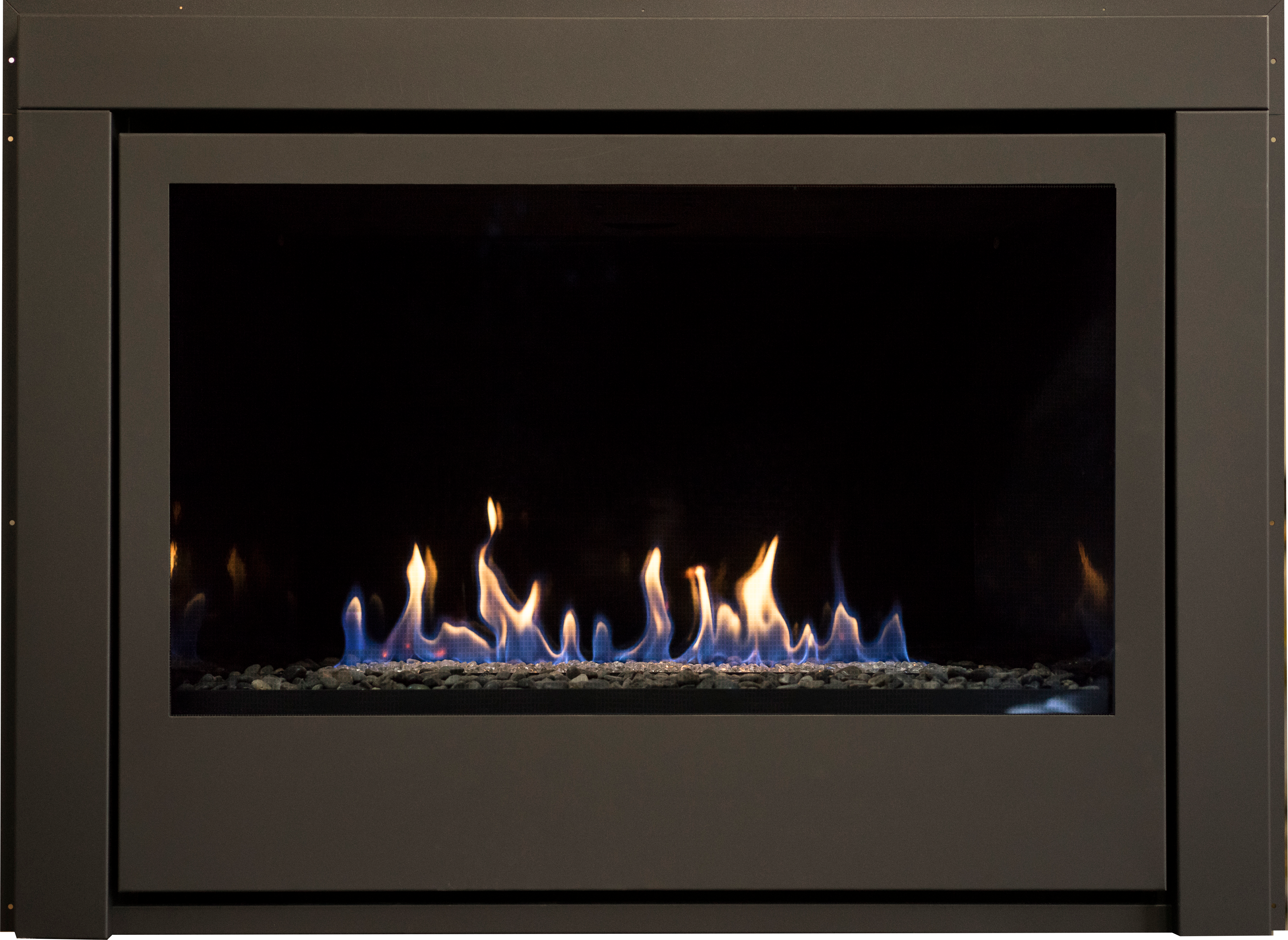

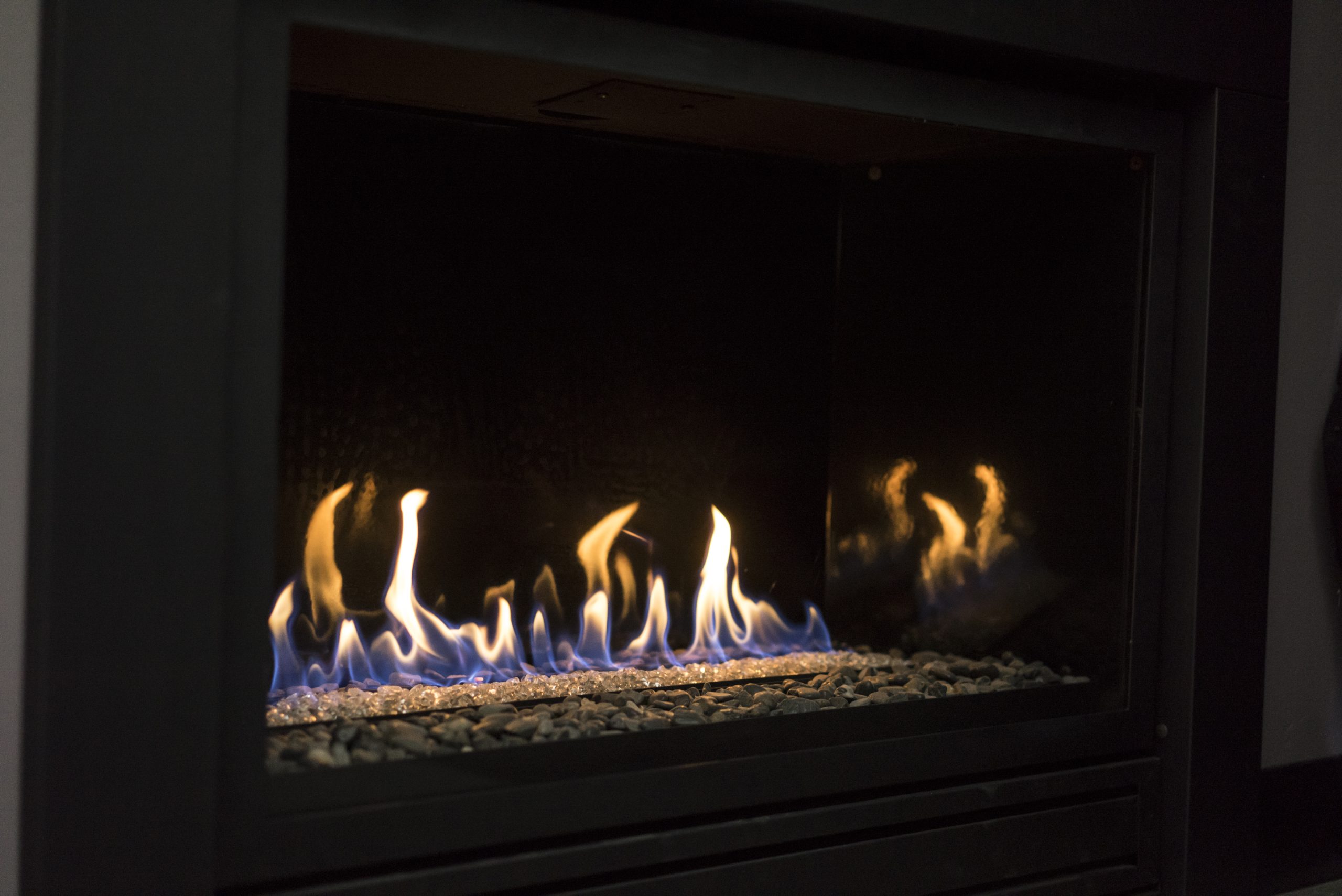

BRADLEY-36 Direct Vent Linear Gas Fireplace


“Apartment B-Vent Replacement”
Designed to replace B-vent fireplaces in apartment buildings. Change your apartment B-Vent into a direct vent fireplace with the Bradley by Sierra Flame.

Featuring the latest technology, there is no need to replace existing venting or make alterations to the buildings exterior.

A Flush clean face design with optional surrounds make the Bradley a perfect addition to any space.

Note: Vertical vent only to replace existing B‐Vent fireplaces





KEY FEATURES

  • Direct Vent gas fireplace Bradley 36Flush clean face design
  • Linear style burner
  • Tempered glass
  • Black glass
  • Modulating flame
  • Fan
  • Electronic ignition
  • 100% safety shut off
  • Black access panel
  • Deluxe remote control
  • Fan kit
  • Modulating valve
  • Safety barrier included

Included Accessories

Remote

Optional Accessories

  • Extra decorative rock media – 3 piece set

Trim and Barrier Options

  • Clean face black surround with safety barrier
  • Stainless steel surround with Safety barrier ‐ 43‐1/4″ W x 27‐1/4″H
  • Basic black surround with Safety barrier ‐ 38 1/4″ W x 25 1/2″ H

Fuel Options

  • Natural Gas

Glass Viewing Area

  • 16-1/2” x 29” W

Installation Support Center

View technical specification drawings, preview or download the most current manuals, brochures and repair guides.

book ruler screwdriver brochure Frequently asked questions email
Manual Specifications Repair Guide Brochures  FAQ’s  Technical Support

Warning WARNING:

This product can expose you to chemicals including Carbon Monoxide, that is an externally vented by-product of fuel combustion, which is [are] known to the State of California to cause birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

More on California Proposition 65 – CLICK HERE



DISCLAIMER

Flames and flame colors on the website may appear differently in real life. To view the most accurate representation of the FIRE & ICE® flame and our regular flame sets, please visit your nearest dealer.


We reserve the right to update products, specifications and dimensions are subject to change. Please refer to the product manual to verify measurements and clearance requirements. All local building codes must be followed.



DISCLAIMER

Flames and flame colors on the website may appear differently in real life. To view the most accurate representation of the FIRE & ICE® flame and our regular flame sets, please visit your nearest dealer.


We reserve the right to update products, specifications and dimensions are subject to change. Please refer to the product manual to verify measurements and clearance requirements. All local building codes must be followed.

Specs

Gas Specifications

Framing Dimensions Viewing Area BTUs (NG) AFUE / P.4
(NG Efficiency)
Weight*
Hi Low
32-1/2” H x 36” W x 15” D
16-1/2” H x 29” W
19,000
13,500
64.13%
110 lbs.



Venting**
Ceiling /
Mantle Height
3” flex vent on exhaust side
5” flex vent on the air intake side
Internl ceiling= 40” from top of unit
Mantel height=42”

**Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC






DISCLAIMER

Flames and flame colors on the website may appear differently in real life. To view the most accurate representation of the FIRE & ICE® flame and our regular flame sets, please visit your nearest dealer.


We reserve the right to update products, specifications and dimensions are subject to change. Please refer to the product manual to verify measurements and clearance requirements. All local building codes must be followed.

Installation



DISCLAIMER

Flames and flame colors on the website may appear differently in real life. To view the most accurate representation of the FIRE & ICE® flame and our regular flame sets, please visit your nearest dealer.


We reserve the right to update products, specifications and dimensions are subject to change. Please refer to the product manual to verify measurements and clearance requirements. All local building codes must be followed.

Surround Dimensions

Outside Surround Dimensions –  Bradley

Model number Outside surround Dimensions Description
BRADLEY-SUR-BLK-3 28.63 x 39.60 Basic 3 PC Black Surround (3 3/4” TOP)
BRADLEY-SUR-BLK-6 30.88 x 39.60 Basic 3 PC Black Surround (6” TOP)
BRADLEY-SUR-BLK-7 31.88 x 39.60 Basic 3 PC Black Surround (7” TOP)
