Product Description

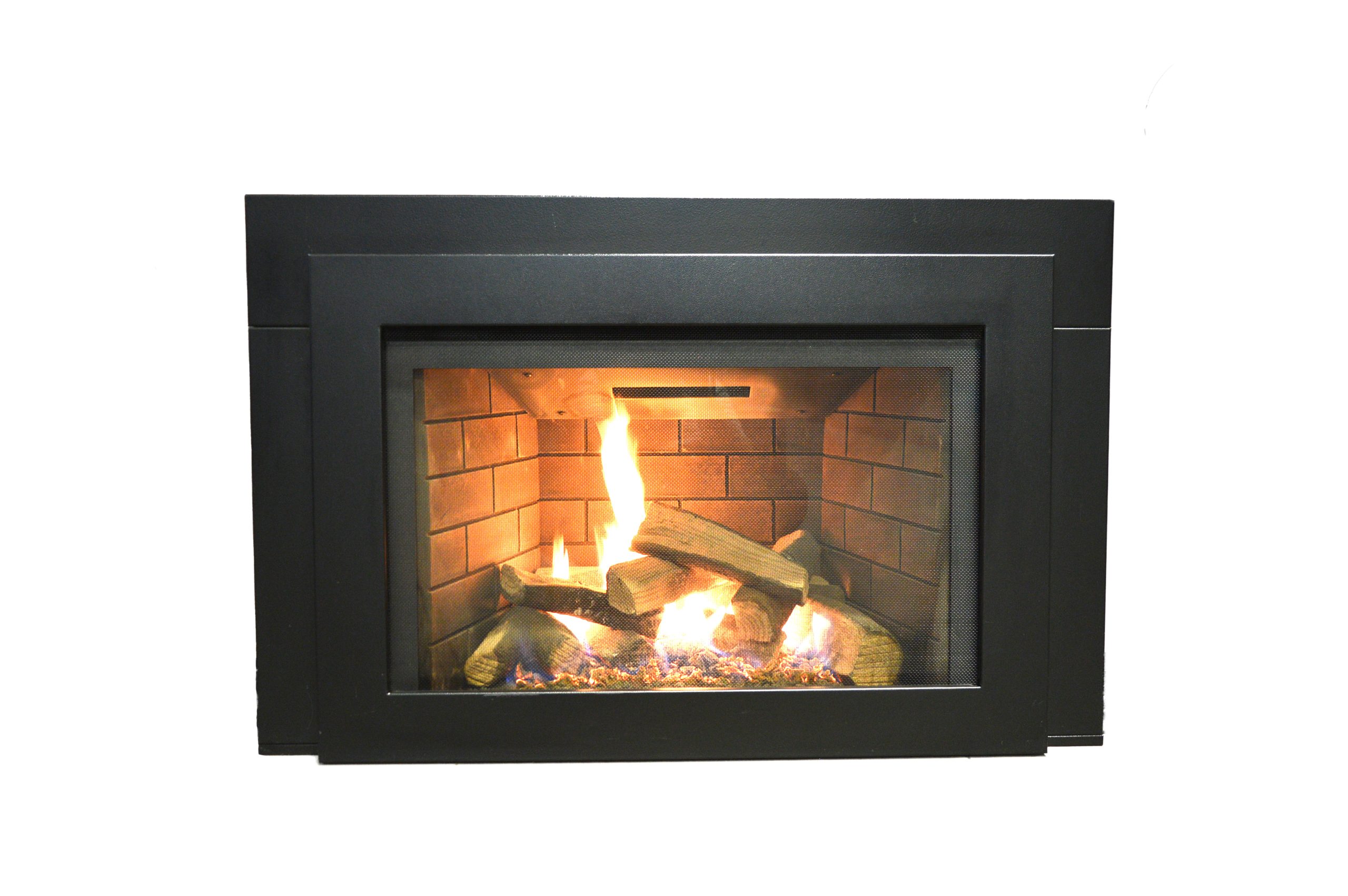

The Abbot 36IN Direct Vent Gas Insert

Just like that little black dress that goes with everything, the Abbott’s direct vent gas fireplace insert is understated sophistication with a no fuss contemporary design.

With it’s impressive glass viewing area, the Abbot gas fireplace offers you superior flame and heat control. Each insert comes with the standard black porcelain panels, black reflective glass and a 9 piece rock set. For a more traditional look try the optional ceramic brick panels and log set. The Abbot comes standard to run on natural gas but also available for liquid propane use.

Sierra Flame’s Direct Vent Insert is a true clean face design offering an impressive glass viewing area. The Abbot is available in Deluxe and Premiere systems and comes standard with contemporary black porcelain panels, black reflective glass and a 9 piece rock set OR traditional ceramic brick panels and log set.

KEY FEATURES

Electronic Ignition
7 day programmable thermostat remote control
7 stage modulating valve (flame control)
Ceramic glass
100% Safety shut off
Dual Fan kit with 6 stage adjustable control
Safety barrier

Included Accessories

or

Optional Accessories

Chimney cap
Extra decorative rock media – 3 piece set

Surround Options

Standard black 3 sided surround ‐ 40″ W x 28″ H
Standard black 3 sided surround ‐ 40″ W x 26″ H
4 sided black surround ‐ 40″ W x 31 1/2″ H

Fuel Options

Natural Gas
Liquid Propane

Glass Viewing Area:

16” H x 25” W

Installation Support Center

View technical specification drawings, preview or download the most current manuals, brochures and repair guides.


Manual	Specifications	Repair Guide	Brochures	FAQ’s	Technical Support

WARNING:

This product can expose you to chemicals including Carbon Monoxide, that is an externally vented by-product of fuel combustion, which is [are] known to the State of California to cause birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

More on California Proposition 65 – CLICK HERE

Gallery

Specs

Gas Specifications

Framing Dimensions	Viewing Area	BTUs (NG)		AFUE / P.4 (NG Efficiency)	Weight*
Framing Dimensions	Viewing Area	Hi	Low	AFUE / P.4 (NG Efficiency)	Weight*
20-1/4” H x 27” W x 16-1/4” D	16” H x 25” W	26,000	10,500	68.3 %	115 lbs.

Venting**	Ceiling / Mantle Height
3” flex vent on exhaust side 3” flex vent on the air intake side	Mantle Height = minimum 33” with a 4” deep mantle Please see manual for other mantle clearances

**Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC

Installation

Brochure
Manual
Tech Specs

Surround Dimensions

Outside Surround Dimensions – Abbot

Surround Dimensions Diagrams

Model number	Outside Surround Dimensions (H x W)	Description
ABBOT-30-BLK-28	28.03 x 40.12	Standard black 3 sided surround
ABBOT-30-BLK-26	26.03 x 40.12	Standard black 3 sided surround
ABBOT-4PCE-BLK-32	Coming soon	4 sided black surround

Optional Decorative Media

Optional Designer Media Kit Available

Inspired by the natural beauty of the outdoors, each kit comes with a rustic log set, colored pebble mix, smooth river rocks, Sierra Flame black fire glass and grey/black and natural vermiculite ash.

You will find there are more log set pieces in the box than can be used. Every precaution has been taken to ensure the log sets are not damaged in transit – but in the event that there is some breakage there will be extra pieces to use in their place.

Optional Glass Media Available

Sierra Flames decorative fire glass media is a beautiful addition to your gas fireplace. Turn your fireplace into a expressive work of art by simply adding Sierra Flame decorative fire glass media. Our fire glass adds a distinctly modern feel to your gas fireplace – mix colors and textures for a unique appearance.

Sierra Flames decorative fire glass is tempered and will not melt or degrade, some discoloration is normal on glass that is placed directly on the flame.

One 5lb container of media will cover 1 square foot.
